Lentils: Grading factors

A

Adhered Soil (ADHS)

Ascochyta

Ascochyta is a fungal disease that attacks the lentil plant and seed. Any degree of white fungal growth on the seed is considered damaged. See Stained and Damage.

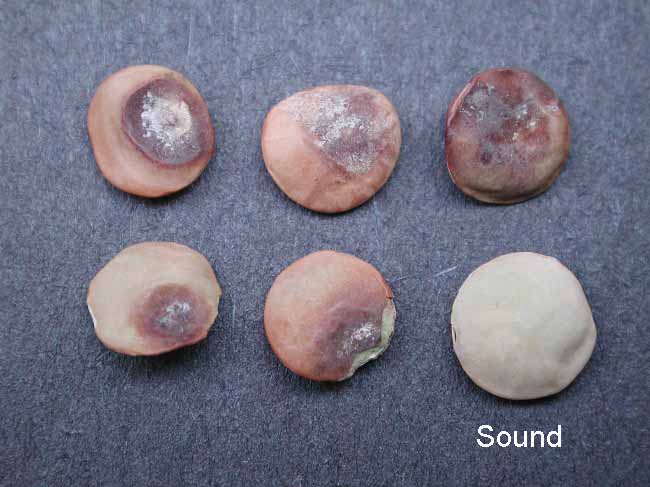

Ascochyta damaged lentils. Lentil at bottom right is sound for comparison.

B

Bleached (BLCH)

Bleached seeds have a whitened seed coat that is distinctly faded from the natural red colour of sound lentils. The discoloration must affect the entire seed coat. Lentils having a lighter pink shade that are contrasting with the overall sample are considered sound.

The red lentil colour guide may be used to assist in the determination of bleached seeds.

Broken

See Peeled, split and broken.

C

Colour (CLR)

Lentils, other than Red

Colour is evaluated after the removal of stained and damaged lentils, using approved lentil standard prints.

Evaluation of the standard of quality of the sample
Description used in grade determinants table	Characteristics
Good natural colour	Lentils that are sound, well matured and have a good natural colour.
Reasonably good natural colour	Lentils with light amounts of adhered soil or lightly discoloured from storage or other natural causes.
Fairly good colour	Lentils with moderate amounts of adhered soil, or otherwise moderately discoloured from natural causes.
Poor colour	Lentils that do not meet the definition of fair colour, but are without severely adhered soil or are severely discoloured (dark brown).

The term sunburned or oxidation is used to describe the normal discolouration of the seed coat which occurs during storage. The colour may vary from light tan to brown or very dark brown, depending on the duration and conditions of storage.

Lentils, Red

Colour is evaluated by using the following guidelines.

Terms used to describe colour in the grade determinants tables
Description used in grade determinants table	Characteristics
Description used in grade determinants table	Copper %	Total bleached including copper %	Adhered Soil
Good natural colour	1	3	Light amounts of adhered soil
Reasonably good natural colour	3	10	Moderate amounts of adhered soil
Fair colour	10	25	Heavy amounts of adhered soil
Poor colour	Lentils that do not meet the definition of fair colour.

Contaminated grain

Important: Wear gloves and a mask to handle any sample that is suspected of containing contaminated grain.

Grain is contaminated for the purposes of the Canada Grain Act if the grain contains any substance in sufficient quantity that the grain is either

adulterated for the purposes of the Food and Drugs Act; or
contaminated within the meaning of the regulations made under section 51 of the Safe Foods for Canadians Act.

Procedures

If a sample is suspected of being contaminated, the sample should be submitted to the Canadian Grain Commission. Determination as to whether grain is contaminated will be made by the Grain Research Laboratory in consultation with the Chief Grain Inspector for Canada. Samples deemed to be contaminated are graded: Lentils, Sample Condemned.

Contrasting colours (CON CLR)

Contrasting colours refers to a difference in cotyledon colour and/or significantly different seed coat colour. Examples include:

Cotyledons: red cotyledons contrast with yellow cotyledons
Seed coats: dark-green speckled lentils contrast with green lentils

Copper (COP)

Copper seeds have a rust color covering both sides of seed and the entire seed coat. The rust colour is in distinct contrast with the natural red colour of sound lentils.

The red lentil colour guide may be used to assist in the determination of copper seeds.

D

Damage (DMG)

Damaged lentils may be peeled, split, broken, sprouted, distinctly green, frost damaged, ascochyta damaged, distinctly deteriorated or discoloured by weather or disease, insect damaged, heat damaged or otherwise damaged in a way which materially affects quality.

Important: Kernels that are deformed are considered sound unless there is another reason for the damage beyond the deformity.

Note: For green cotyledon varieties, do not assess distinctly green cotyledons as damage. For example, Queen Green variety.

Procedures

Handpick suspect damaged lentils.
Lentils showing some indication of possible internal damage are to be cut for confirmation of damage.

E

Earth pellets

Hard earth pellets are pellets that do not crumble under light pressure. See Stones.
Soft earth pellets are pellets that crumble under light pressure. See Foreign material.

Ergot (ERG)

Ergot is a plant disease producing elongated fungal bodies with a purplish-black exterior, a purplish-white to off-white interior, and a relatively smooth surface texture.

Excreta (EXCR)

Excrement from any animal including mammals, birds and insects.

Important : Wear gloves and a mask to handle any samples that you suspect may contain excreta.

Extraneous material

Can be defined as glass, metal, wood, plastic or any other material not already defined in the Official Grain Grading Guide.

F

Fertilizer pellets (FERT PLTS)

Fertilizer pellets are a manufactured plant nutrient product used by producers in the production of grain. They are typically small, round or irregular shaped and usually white, grey, brown, pink or reddish in colour.

Procedures

Handpick any fertilizer pellets and determine the concentration basis the net working sample.
Fertilizer pellets are assessed as stones when the concentration does not exceed 1.0% of the net sample weight.
Samples containing fertilizer pellets in excess of 1.0% of the net sample weight are graded Lentils, Held IP Suspect Contaminated Grain.

Fireburnt (FBNT)

Fireburnt seeds are seeds charred or scorched by fire. A cross-section of a fireburnt seed resembles charcoal with numerous air holes. The air holes result in a low weight seed which crumbles easily under pressure.

Procedures

Samples of lentil containing any fireburnt seeds are graded Lentil, Sample Canada Account Fireburnt.

Foreign material (FM)

Foreign material includes anything that is not a lentil or part of a lentil.

Frost damage (FR)

Frost damage is normally indicated by a combination of wrinkling and close adherence of the seed coat to the cotyledon. The seed coat may be translucent in appearance, and the cotyledons are brittle in texture. Frost damage is included in the tolerance for Other Damage.

Procedures

Handpick all frost-damaged lentils.
Cut suspect frost-damaged lentils. Frost-damaged seeds are brittle when cut.

H

Heated (HTD)

Heated lentils are usually dark tan to black in appearance.

Grading factor for sample contents
If sample contains:	Then the grading factor is:
Lentils with tan-coloured cotyledons and a distinct heated odour	Heated
Lentils with tan-coloured cotyledons and no odour	Damage

Procedure

Handpick suspect heated lentils.
Cut suspect seeds to expose the cotyledons. Heated lentils have tan-coloured cotyledons.
Heated seeds of other grains are included in the tolerance for Heated.

I

Insect parts (I PARTS)

Insect parts refers to pieces of insects such as grasshoppers and lady bugs that remain in the sample after cleaning or processing. Samples are analyzed for the percentage of insect fragments and graded according to established tolerances.

If pulse crops come into contact with insects during the harvesting process, it may result in seed staining and earth adhering to the seed and may result in samples having an objectionable odour. Samples containing staining of this nature will be considered to be earth tagged and graded according to colour definitions. Samples having a distinct objectionable odour not associated with the quality of the grain will be graded Type of Grain Sample Account Odour.

O

Odour (ODOR)

There is no numeric tolerance for odour. Consider

The basic quality of the sample
The type and degree of the odour
The presence of visible residue causing the odour

Heated, fireburnt and odour for lentils
If odour is the grade determinant and there is:	Then the grade is:
An excessive objectionable odour not associated with the quality of the grain, but not heated or fireburnt	Lentils, Sample Canada Account Odour
An excessive heated odour	Lentils, Sample Canada Account Heated
An excessive fireburnt odour	Lentils, Sample Canada Account Fireburnt

Other damage (ODMG)

Other damage is any damage other than heated, or peeled, split and broken.
See Damage.

P

Peeled, split and broken (PLDSPLTBKN)

Peeled, split and broken includes lentils which are otherwise sound but which are less than three-quarters of whole seeds or where less than one-half of the seed coat is intact.

Lentils with cracked or clipped seed coats are considered sound when the cotyledons are firmly held together.

R

Rime (RIME)

Rime is the adhered lining of the seed pod. It is included in the general tolerance for Damage.

If the rime:	Then the grading is:
Completely and densely covers the lentils	Damaged
Is sparse enough to expose the soundness of the lentil	Sound—the rime is considered in the general appearance of the sample

S

Sclerotinia sclerotiorum (SCL)

Sclerotinia sclerotiorum is a fungus producing hard masses of fungal tissue, called sclerotia. The sclerotia vary in size and shape, have a course surface texture, vary in exterior color from dark black to gray to white and have a pure white interior.

Split

See Peeled, split and broken.

Sprouted (SPTD)

Lentils are considered sprouted when the seed coat splits and the primary sprout emerges from between the cotyledons or the primary sprout has been broken off but there is clear evidence of sprouting. Sprouted is considered in the tolerance for Other Damage.

Stained (STND)

Stained lentils includes (only applies to Lentils, other than Red):

Mottled seeds—seeds with a significant number of distinct spots on the seed coat
Water spot—seeds with distinct brown discolourations on the seed coat.
Ascochyta—seeds with dark-coloured lesions on the seed coat. Seeds with white fungal growth are also considered as damaged. See Ascochyta.
Blue-black—seeds of green lentils with significant blue-black discolouration of the seed coat. Seeds of varieties of lentils with dark-green speckled or coloured seed coats are considered as Contrasting colours.

Procedure

Refer to digitally produced colour prints of stained lentils as a grading guide

Stained
Damaged-Ascochyta, also considered stained
Mottled, considered as stained
Not stained

Stones (STNS)

Stones are hard shale, coal, hard earth pellets, and any other non toxic materials of similar consistency. Fertilizer pellets are assessed as stones when constituting 1.0% or less of the net sample weight. (See Fertilizer pellets for specific procedures to be followed when samples contain fertilizer pellets.)

Procedures

Handpick stones from a representative portion of the cleaned sample.
Determine stone concentration in the net sample.

In western Canada samples of grain containing stones in excess of “basic grade” tolerances, up to 2.5% are graded Lentils, Rejected “basic grade” Account Stones. The “basic grade” refers to a grade established in the Canada Grain Regulations (grades listed in the first column in grade determinant tables) that would have been assigned to the sample if it contained no stones.
In eastern Canada samples of grain containing stones in excess of grade tolerances are degraded to lower grades. Samples containing stones in excess of the tolerance of the lowest grade established by regulation up to 2.5% are graded Lentils, Sample Canada Account Stones.

In western and eastern Canada grain containing more than 2.5% stones is graded Lentils, Sample Salvage.

Examples: Western Canada

Excerpt from grade determinant tables for Lentils, Canada Red
Grade name	Stones %
number 1 Canada Red	0.1
number 2 Canada Red	0.2
Extra number 3 Canada Red	0.2
number 3 Canada Red	0.2

Basic grade: Lentils, number 1 Canada Red

Grade in Western Canada if stones found
If the above sample contained	Grade in western Canada
0.2% stones	Lentils, Rejected number 1 Canada Red Account Stones
1.0% stones	Lentils, Rejected number 1 Canada Red Account Stones
3.0% stones	Lentils, Sample Salvage

Examples: Eastern Canada

Excerpt from grade determinant tables for Lentils, Canada Red
Grade name	Stones %
number 1 Canada Red	0.1
number 2 Canada Red	0.2
Extra number 3 Canada Red	0.2
number 3 Canada Red	0.2

Basic grade: Lentils, number 1 Canada Red

Grade in Eastern Canada if stones found
If the above sample contained	Grade in eastern Canada
0.2% stones	Lentils, number 2 Canada Red
1.0% stones	Lentils, Sample Canada Red Account Stones
3.0% stones	Lentils, Sample Salvage

T

Treated seed and other chemical substances

Treated seed

Treated seed is grain that has been adulterated with an agricultural chemical for agronomic purposes. The types of agricultural chemicals used to treat seed include pesticides, fungicides and inoculants. These seed dressings contain a dye to render the treated seed visually conspicuous. The colour of the dye varies depending upon the type of treatment and the type of grain. The current Canadian colour standard for pesticide and fungicide seed treatments for cereal (including corn) is red or pink. The colour standard for pesticide and fungicide seed treatments for canola is blue; however, green has also been used. Pulse crop (including soybeans) pesticide and fungicide seed treatments are typically blue or green. The coatings or stains may appear greasy or powdery and the surface area covered may range from tiny flecks to complete coverage.

Other chemical substances

Other chemical substances refers to any chemical residues either adhering to the kernel or remaining in the sample and to samples having a chemical odour of any kind.

Important: Wear gloves and a mask to handle any samples that you suspect may contain contaminated grain.

Procedures

If a sample is suspected of being coated with a pesticide, desiccant, inoculant or if the sample contains evidence of any foreign chemical substance other than fertilizer pellets, the sample shall be graded Lentils, Held IP Suspect Contaminated Grain.

V

Variety (VAR)

Lentil varieties may have a wide range of seed coat colours, including green, red, speckled green, black and tan. The cotyledon colour may be red, yellow or green. Lentils are designated into two classes: Lentils, Red and Lentils, other than Red. The method of determining the class of a lentil is determined by the cotyledon colour.
There are a number of combinations of seed coat colours and cotyledon colours. This includes a red lentil variety with a green seed coat.

Procedure

If you are unsure of the cotyledon colour or suspect it is different than anticipated, remove the seed coat from a small portion of the sample to determine the cotyledon colour. Use a barley pearler to assist in removing the seed coat and determine the cotyledon colour

Note: On written request, the lentil variety forms part of the grade name, for example, No. 1 Canada, Laird.

Important: State “Varietal purity not guaranteed” in the remarks section of grading certificates issued using a varietal name.

W

Wrinkled (WRKL)

Wrinkled seeds are characterized by a seed surface that has sharp ridges and pronounced depressions that could also be described as seed coat folds and indents. Wrinkles may be evident only on one side of the lentil. Lentils that only have dimpled seed coat or folds restricted only to the outside ring of the seed are considered sound.

The red lentil wrinkled guide may be used to assist in the determination of wrinkled seeds.

Note: Wrinkled only applies to red lentils
